The Beginner’s Guide to Choosing a Yamaha 7.2 Surround Sound Receiver

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

Shoppers looking to upgrade their living room entertainment face key decisions when choosing a yamaha 7.2 receiver. Multi-channel audio transforms movies, sports, and games into immersive experiences, but navigating channel counts, video standards, and speaker layouts can be confusing. A seven-channel unit provides great flexibility, letting you establish a traditional surround sound field with side and rear channels, or an object-based height system with overhead effects, paired with dual subwoofers for balanced room bass.

The Yamaha receiver lineup is organized into distinct tiers matching different spaces and needs. Standard models emphasize straightforward connectivity with gaming-ready video switching, while the flagship AVENTAGE series adds heavier amplification, advanced acoustic calibration, and multi-zone listening. In this yamaha av receiver comparison, we examine six models from the brand, breaking down channel layouts, video support, and streaming features so you can decide which yamaha av receiver to buy for your home.

Yamaha AV Receivers Lineup at a Glance

The Models in Detail

Yamaha RX500A 7.2-Channel Home Theater AV

• Best for Gamers seeking 8K and high frame rates
• Color Black
• Formats Dolby
• Weight 17.6 pounds
• Dimensions 12.5 x 17.125 x 6.125 inches

The Yamaha RX500A 7.2-Channel Home Theater AV receiver delivers 70 watts of power across seven channels alongside dual subwoofer outputs. It decodes Dolby Atmos and DTS:X, enabling either a 5.2.2-channel setup with height channels or a traditional 7.2-channel surround sound system. Equipped with five total HDMI ports (four inputs, one output), it handles 8K at 60Hz and 4K at 120Hz video alongside ALLM, VRR, and HDMI eARC for high-frame-rate console gaming and television audio.

Streaming options on this Yamaha RX500A include Wi-Fi and Bluetooth Multipoint for connecting two phones simultaneously. The receiver natively supports Spotify Connect, Google Cast, AirPlay 2, TIDAL Connect, and Qobuz Connect. An included calibration microphone measures room acoustics to optimize speaker output, while an on-screen settings menu and quick guide simplify initial setup.

This receiver suits gamers and movie fans who want current 8K video pass-through and modern wireless casting. It gives way to the AVENTAGE models if you need Zone 2 multi-room playback or higher wattage for large floorstanding speakers.

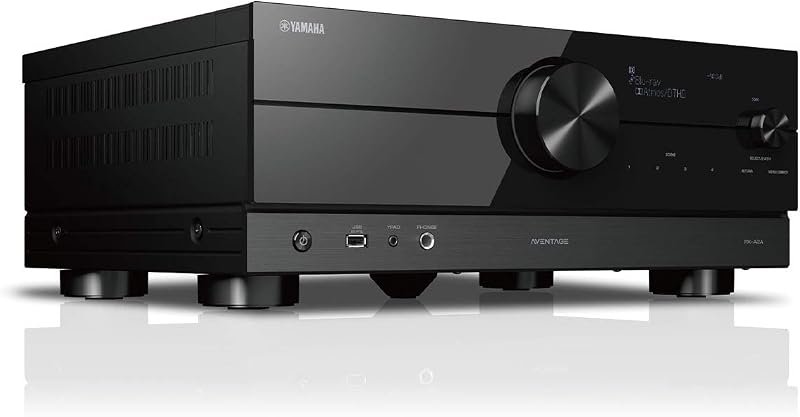

Yamaha RX-A2A AVENTAGE 7.2-Channel AV Receiver

• Best for Cinema fans wanting advanced room calibration
• Formats WAV
• Color Black
• Weight 25.35 pounds
• Dimensions 14.625 x 17.125 x 6.75 inches

The Yamaha RX-A2A AVENTAGE 7.2-Channel AV Receiver serves as the foundation of Yamaha’s premium line, producing 100 watts per channel across seven channels with dual subwoofer outputs and Zone 2 audio. This yamaha aventage 7.2 receiver decodes Dolby Atmos, DTS:X, and Auro-3D soundtracks. It houses eight total HDMI ports (seven inputs, one output) with HDCP 2.3 and eARC. All inputs accept 4K at 60Hz, while three support 8K at 60Hz and 4K at 120Hz with ALLM and VRR.

Acoustic tuning is managed by YPAO R.S.C. with multipoint measurement, assessing sound reflections across multiple seating locations. Surround:AI dynamically optimizes vocal clarity and surround effects in real time. Streaming covers AirPlay 2, Spotify Connect, MusicCast, and Roon Tested status, with services like Amazon Music HD, TIDAL, and Qobuz. It includes a turntable phono input and works with Sonos via a separate Sonos Port.

This Yamaha RX-A2A AVENTAGE is ideal for home cinema enthusiasts seeking clean power, premium room calibration, and secondary zone listening. It gives way to the RX-A780 and RX-A880 if your media room requires dual HDMI outputs to feed both a television and a projector simultaneously.

Yamaha AVENTAGE RX-A780 7.2-ch 4K Ultra

• Best for Dual-display rooms and vinyl listeners
• Color Black
• Formats WAV, WMA
• Weight 24.3 pounds
• Dimensions 15 x 17.18 x 6.75 inches

The Yamaha AVENTAGE RX-A780 7.2-ch 4K Ultra receiver delivers 160 watts of output power across 7.2 channels with Zone 2 flexibility. It supports Dolby Atmos and DTS:X in 5.2.2-channel height arrangements, enhanced by Cinema DSP 3D processing. Video switching includes seven total HDMI ports with five inputs and two outputs supporting HDCP 2.2, 4K Ultra HD, HDR10, and Dolby Vision, allowing you to feed two displays at the same time.

Networking on this Yamaha AVENTAGE RX-A780 includes MusicCast multi-room audio, Wi-Fi, Bluetooth, AirPlay, and Spotify Connect, alongside Pandora, SiriusXM, and TIDAL. High-resolution file support includes DSD up to 11.2 MHz and FLAC or WAV up to 192 kHz. It features a phono input for record players and YPAO R.S.C. multipoint calibration. MusicCast Surround lets you add optional MusicCast 20 wireless speakers as rear surround channels.

This receiver fits media spaces that run both a flat-screen television and a projector. However, it gives way to the newer RX-A2A or RX500A if you require HDMI 2.1 features like 8K video pass-through or 4K gaming at 120Hz.

Yamaha AVENTAGE RX-A880 7.2-ch 4K Ultra

• Best for Multi-source theaters needing dual displays
• Color Black
• Weight 24.3 Pounds
• Formats WAV, WMA, MPEG
• Dimensions 14.96 x 17.13 x 6.73 inches

The Yamaha AVENTAGE RX-A880 7.2-ch 4K Ultra provides 115 watts of output power and supports 7.2-channel and 5.2.2-channel Dolby Atmos and DTS:X layouts. It features nine total HDMI ports configured with five inputs and two outputs supporting 4K Ultra HD pass-through, HDR10, Dolby Vision, and BT.2020. The dual HDMI outputs allow simultaneous connection to two separate screens without unplugging cables.

Room tuning on the Yamaha AVENTAGE RX-A880 is handled by YPAO Sound Optimization with R.S.C. and multipoint measurement. Streaming features encompass MusicCast multi-room audio, Wi-Fi, Bluetooth, AirPlay 2, and Spotify Connect, with voice control via Amazon Alexa. It includes a dedicated phono input, high-resolution audio decoding up to 11.2 MHz DSD, and MusicCast Surround support for wireless rear channels.

This model is built for setups with multiple video sources needing dual display routing and turntable connectivity. It gives way to the RX-A2A or RX500A if you need modern high-frame-rate 4K120 or 8K gaming pass-through.

Yamaha TSR-5810 7.2-channel Network AV Receiver

• Best for High-power setups with mirrored audio zones
• Color Black
• Weight 17.9 pounds
• Dimensions 17.1 x 12.9 x 6.4 Inches

The Yamaha TSR-5810 7.2-channel Network AV Receiver delivers 145 watts of output power for 7.2-channel speaker setups, supporting Dolby Atmos and DTS:X audio formats. It features 4K Ultra HD video pass-through with HDCP 2.2 compliance alongside HDMI eARC for television audio. For secondary rooms, it includes Zone B audio to send identical stereo sound to an adjacent space such as a patio or dining area.

Wireless streaming on this Yamaha TSR-5810 includes built-in Wi-Fi, Bluetooth, and MusicCast wireless multi-room capability for sharing audio across household speakers. Physical ports include USB and HDMI connectivity, managed via the supplied remote control.

This model suits listeners who want high power and Dolby Atmos decoding for a single display and a mirrored second listening zone. With only one HDMI port listed in its specifications, it gives way to the RX500A or RX-V4A if you need to plug in multiple video devices.

YAMAHA RX-V4A 5.2-Channel AV Receiver

• Best for Smaller living rooms wanting 5.2 surround
• Formats WAV
• Color Black
• Size 10.50
• Weight 20 Pounds
• Dimensions 20 x 18 x 11 inches

The YAMAHA RX-V4A 5.2-Channel AV Receiver provides 80 watts of output power across five channels with dual subwoofer outputs. It includes five total HDMI ports (four inputs, one output) supporting HDCP 2.3, eARC, 4K at 60Hz, 4K at 120Hz, and 8K at 60Hz. It decodes Dolby TrueHD and DTS-HD Master Audio, and supports Dolby Vision, HLG, and BT.2020 color spaces.

Streaming support includes dual-band Wi-Fi, Bluetooth, AirPlay 2, Spotify Connect, and MusicCast, with access to TIDAL, Qobuz, and Amazon Music HD. Control is available via Alexa, Google Assistant, and Siri. The receiver uses five-way binding posts and YPAO automated calibration. If your priorities focus purely on music rather than multi-channel cinema sound, exploring a dedicated yamaha stereo amplifier may offer a simpler alternative.

This receiver fits smaller rooms where a five-speaker surround setup is preferred over seven channels. It gives way to the RX500A or RX-A2A if you want to expand into overhead height speakers with Dolby Atmos decoding.

Chip values are fields copied from the Amazon product listing. Star figures are the average rating left by Amazon buyers, not a score given here.

Matching a Model to Your Setup

• Modern Gaming and Streaming Rooms: Choose the Yamaha RX500A 7.2-Channel Home Theater AV for its 4K120 and 8K60 HDMI pass-through, VRR, ALLM, and Dolby Atmos support.
• Dedicated Home Theaters with Turntables: Select the Yamaha RX-A2A AVENTAGE 7.2-Channel AV Receiver for 100 watts of power, Surround:AI processing, a dedicated phono input, and Zone 2 multi-room audio.
• Dual-Screen Media Rooms: Pick the Yamaha AVENTAGE RX-A780 7.2-ch 4K Ultra or the Yamaha AVENTAGE RX-A880 7.2-ch 4K Ultra to send video to a television and a projector simultaneously using dual HDMI outputs.
• High-Power Basic Surround with Mirrored Audio: Go with the Yamaha TSR-5810 7.2-channel Network AV Receiver for 145 watts of output, Dolby Atmos decoding, and Zone B secondary audio routing.
• Compact Living Rooms and Apartments: Opt for the YAMAHA RX-V4A 5.2-Channel AV Receiver if you want modern 8K and 4K120 video compatibility tailored to a five-speaker surround layout.

Before You Buy

When planning your yamaha home theater receiver setup, note what the listings do not include. None of these receivers arrive with speaker cables, subwoofers, or HDMI cables in the box. You must supply high-speed HDMI cables rated for 4K or 8K depending on your equipment, along with speaker wire to connect your surround channels. While the RX500A, RX-A2A, RX-A780, and RX-V4A specify an included calibration microphone, the listing for the TSR-5810 does not state whether a microphone is included.

The listings also omit exact cabinet ventilation clearances and overall chassis weights. AV receivers generate warmth during operation, especially when driving seven speakers, so open shelf placement is necessary rather than enclosing them in sealed cabinets without airflow. If you decide that multi-channel wiring creates too much living room clutter, reading about an onkyo 2 channel stereo receiver can help contrast two-channel simplicity with complex surround gear.
